Facade access

Monorail suspended access

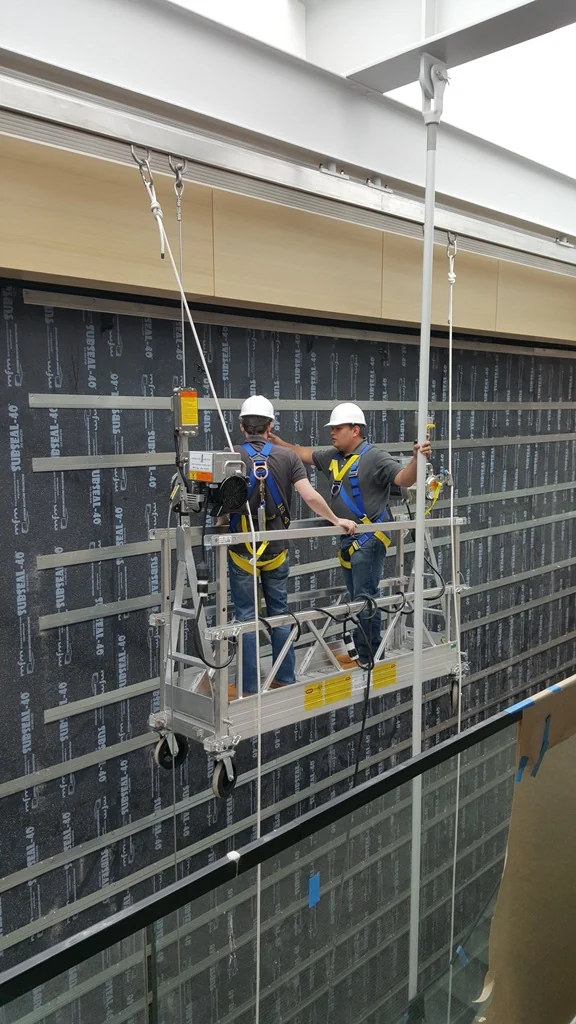

Four separate trolleys share one compact slotted track beneath the soffit. Two carry the platform suspension lines, and two connect the worker safety lines along the recessed façade.

Explore this system in 3D

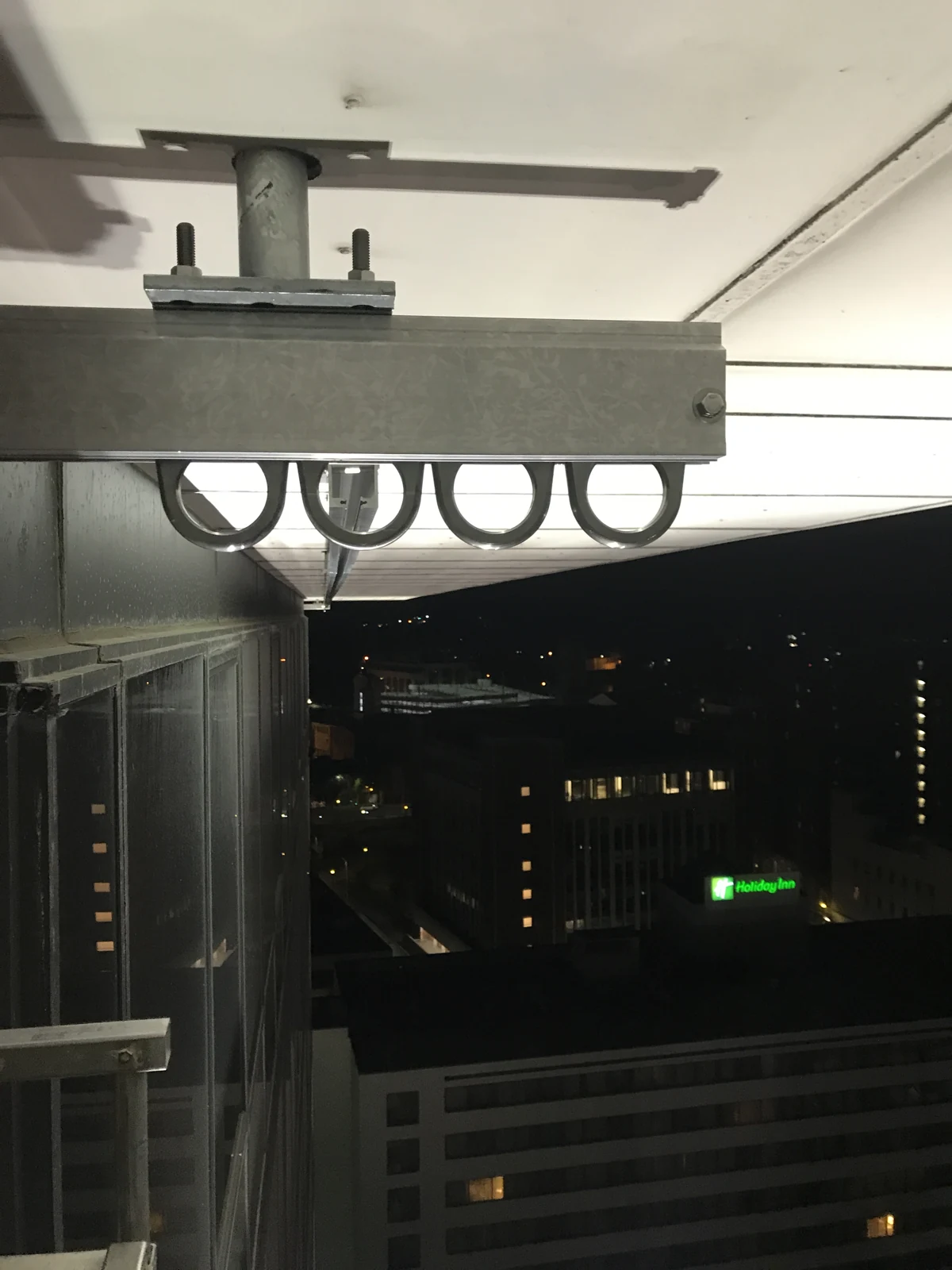

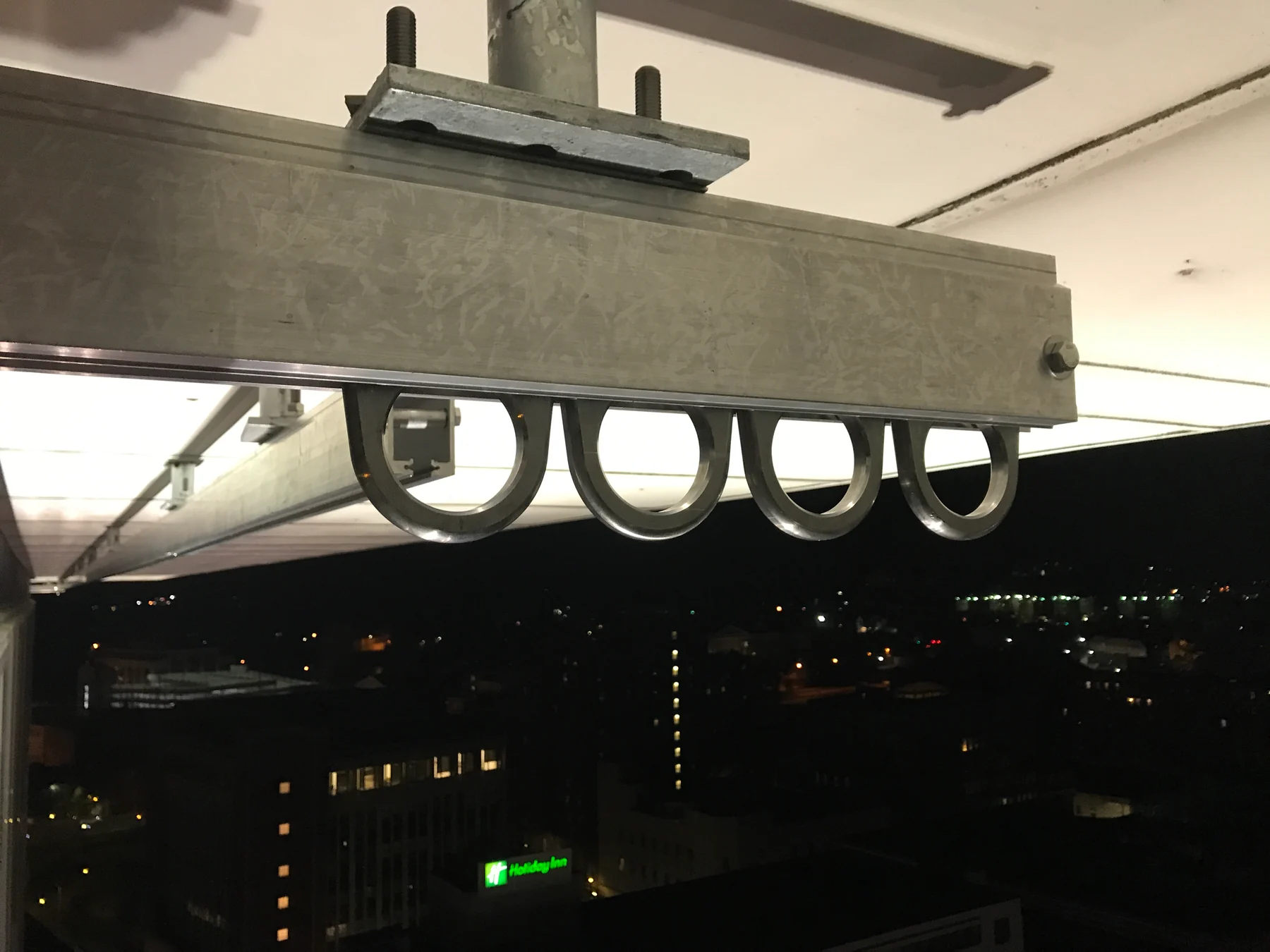

Installed monorail with pendant trolley eyes beneath the enclosed track.
FROM OUR PROJECTSInstalled monorail with pendant trolley eyes beneath the enclosed track.

UNDERSTAND THE SYSTEM

Reach the facade beneath an overhang.

  1. 01

    One enclosed track contains all four trolleys.

  2. 02

    Two trolleys support the two ends of the suspended platform.

  3. 03

    Two more trolleys provide separate connections for the workers’ safety lines.

  4. 04

    Concealed supports hold the track beneath the floor, extending to both ends of the overhang.

FROM THE FIELD TO THE DETAIL

A closer look at the track.

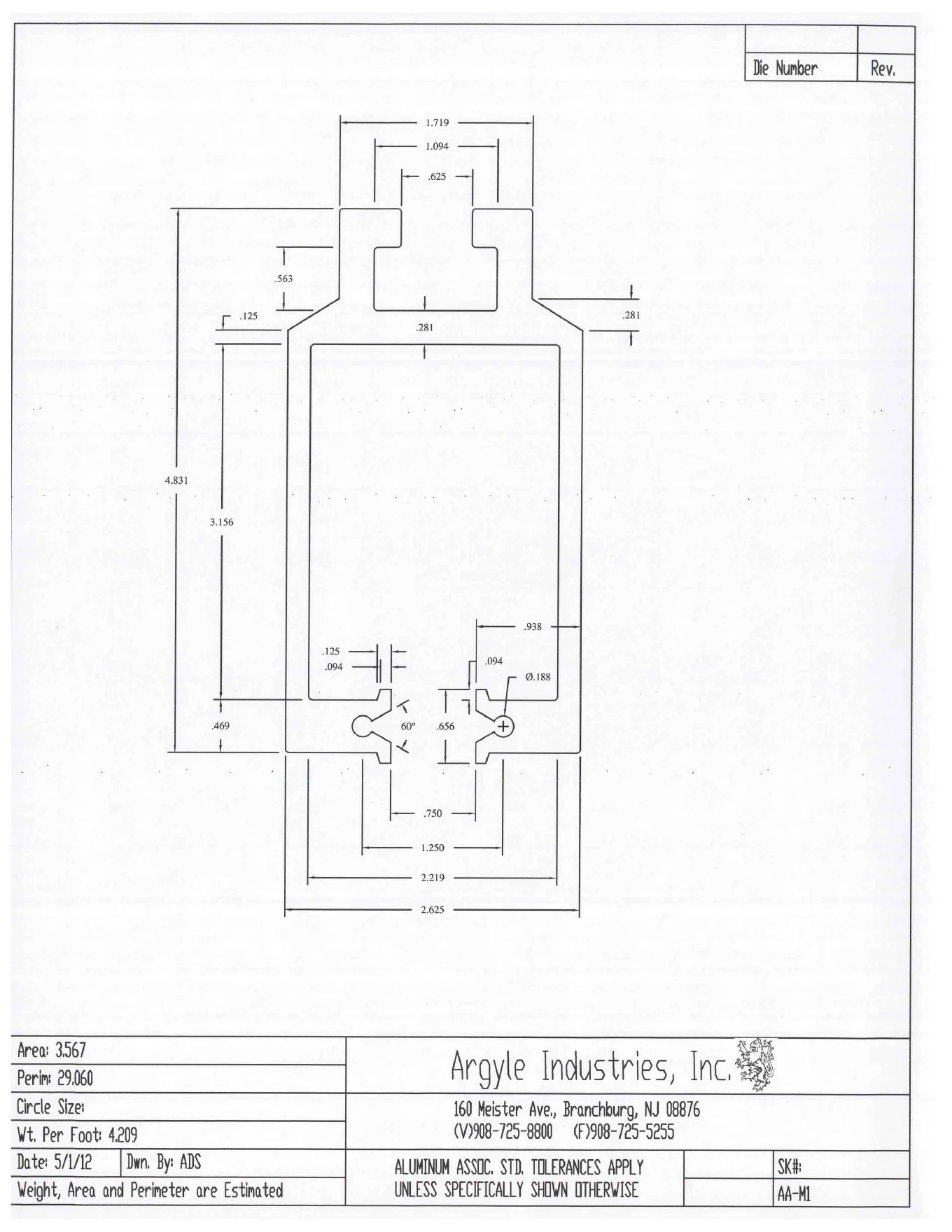

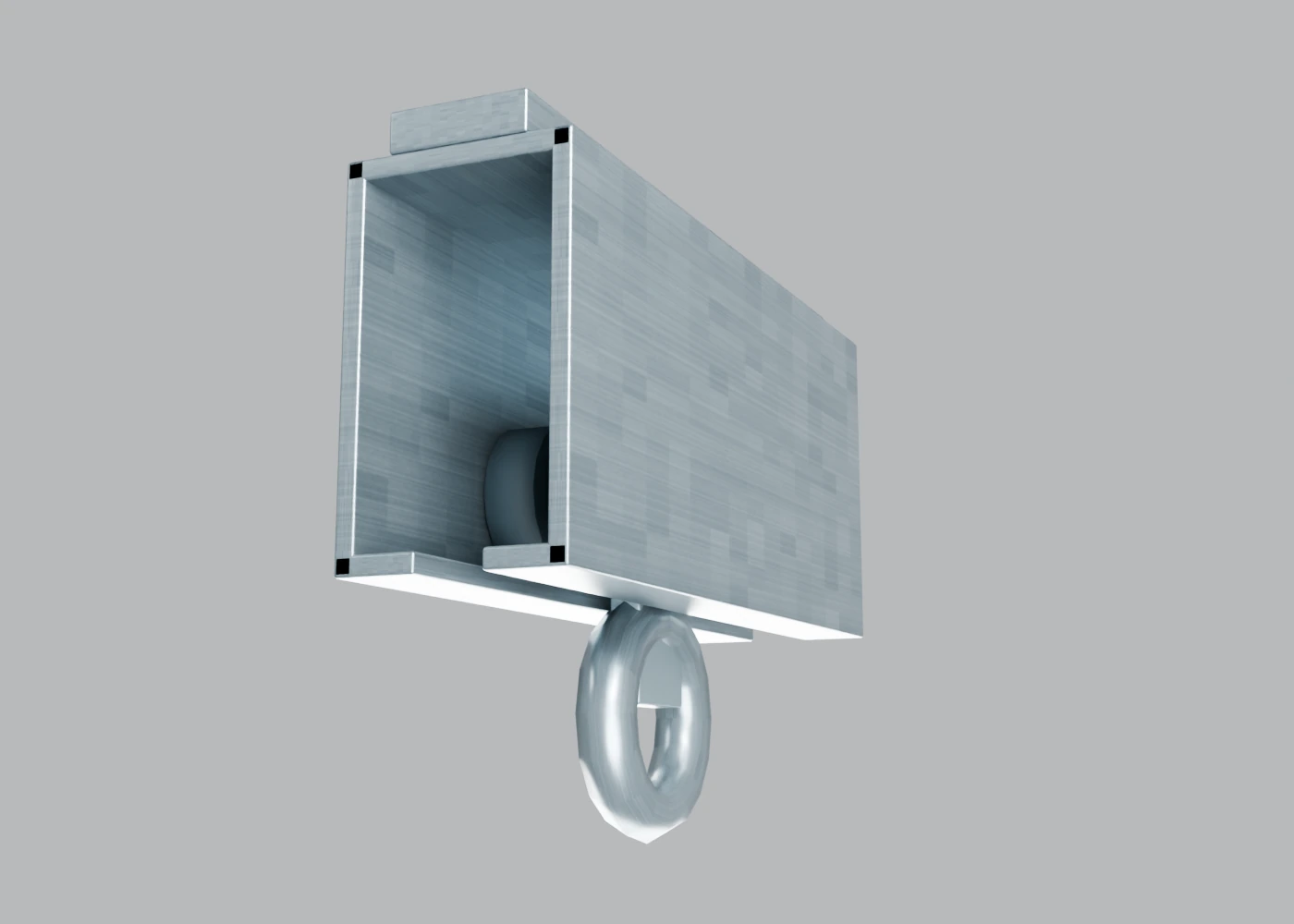

Actual American Anchor installation photos, the supplied AA-M1 section drawing and a cutaway of the 3D model.

KEEP EXPLORING

The next connection.

Visit the classroom

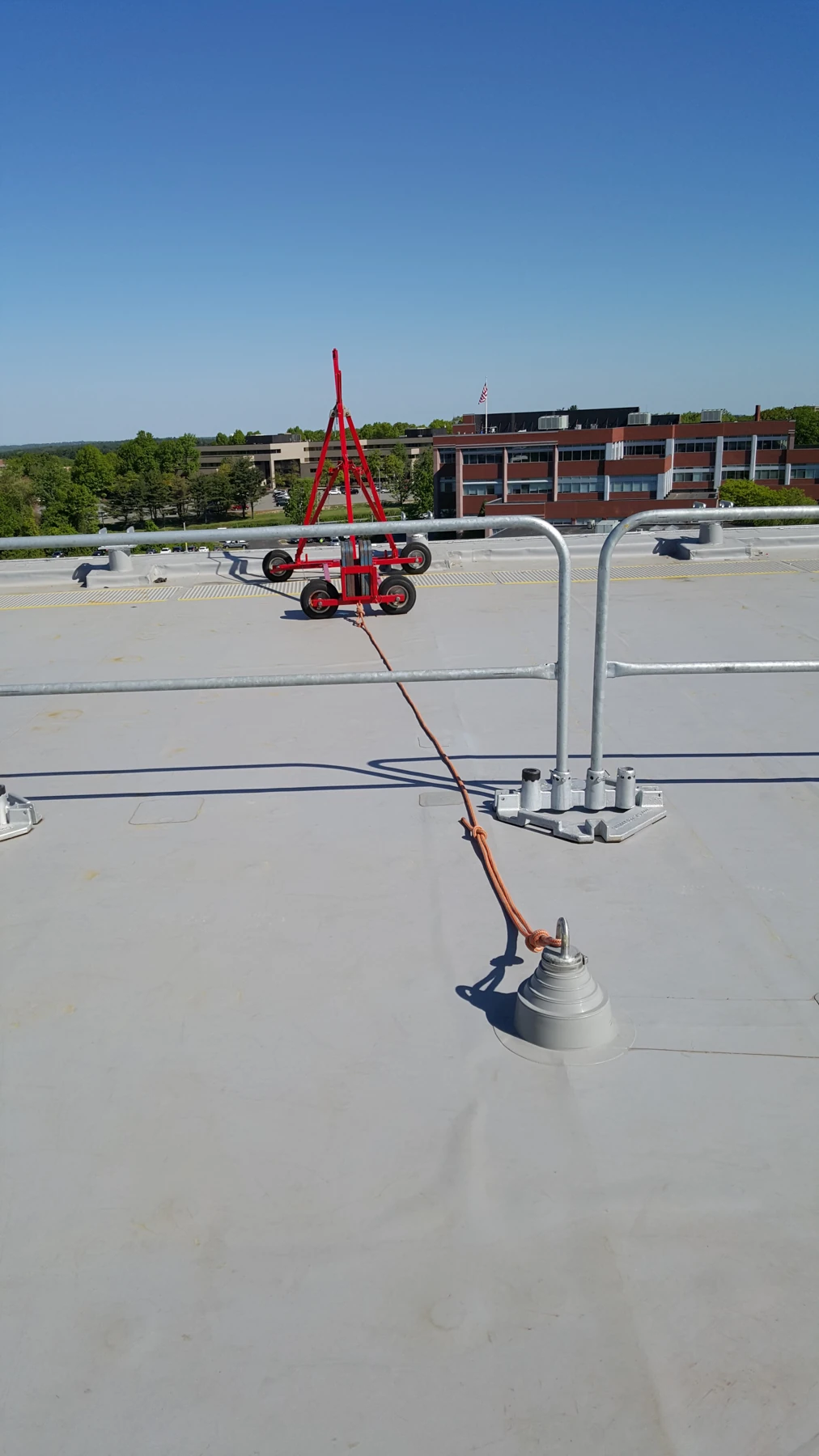

Roof-side outrigger for chair work tied back to a permanent anchor.
Facade access

Bosun’s chair & rope descent

Davit arms and suspended access equipment at roof level.
Facade access

Suspended scaffolds & davits

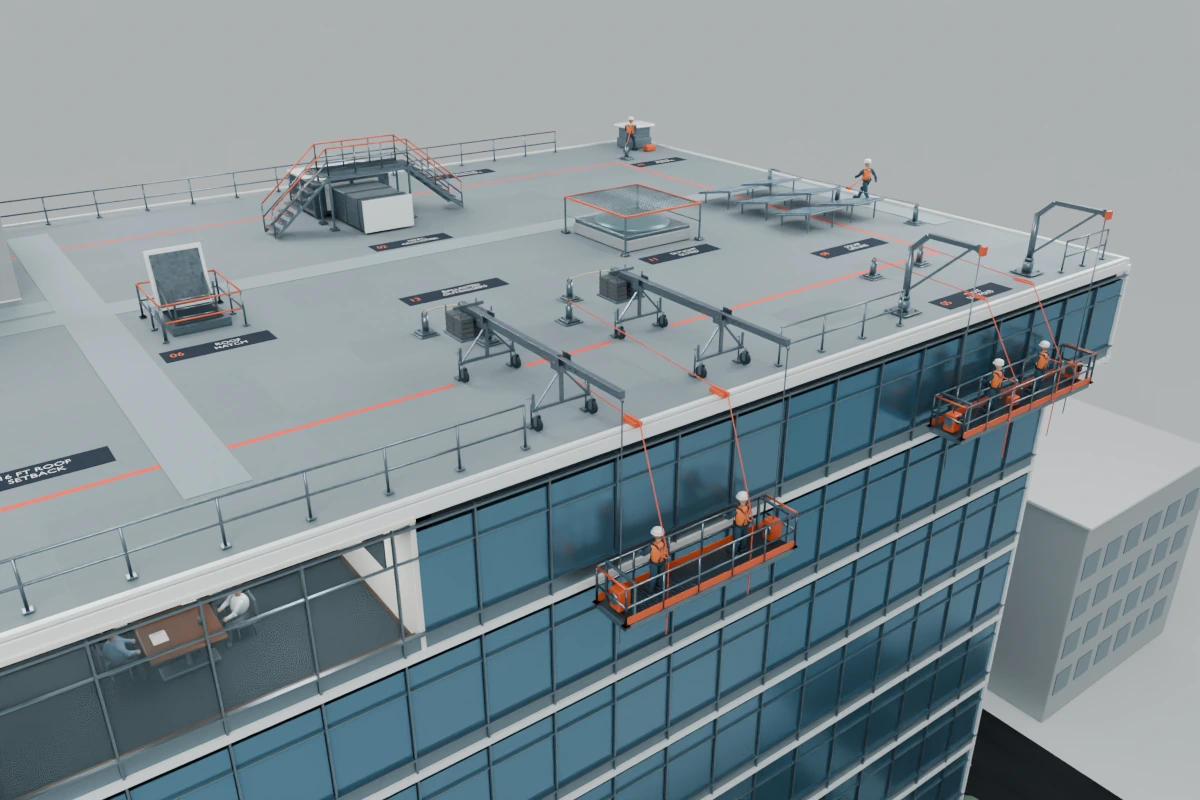

Illustrative 3D layout showing the paired outriggers, tiebacks and separate worker safety lines.
Suspended access

Ballasted outrigger beams
